Three strong arguments
High flexibility
Rigid and flexible urological endoscopes, analog or digital, single-use or reusable — all on one platform. The right solution for every procedure.
One software. One workflow.
One system, one operating logic, one documentation. No isolated solution, no media break.
Economical and sustainable
Reusable lowers the cost per procedure, single-use provides confidence at high treatment frequency — with an advantage in total operating costs and less waste.
Key features
- ✓ Flexible choice of optics: reusable and single-use – freely combinable.
- ✓ Spectral picture optimisation (OPE) for better lesion detection
- ✓ Intuitive, complete findings and patient software
- ✓ Easy integration into existing IT: HIS via DICOM, HL7 or GDT
- ✓ High-contrast touchscreen in two sizes (15.6″ / 21″)
- ✓ Compact and space-saving — also with cart
Imaging that simplifies the examination
The PES PILOT HDpro is designed to improve the quality and simplify the process of endoscopic examinations — using the latest full-HD C-MOS chip technology and a touchscreen with no loss of contrast.
Latest C-MOS chip technology
Resolution beyond Full HD (1920×1200) with maximum depth of illumination — sharp, contrast-rich images even in low light. High refresh rate with global shutter.

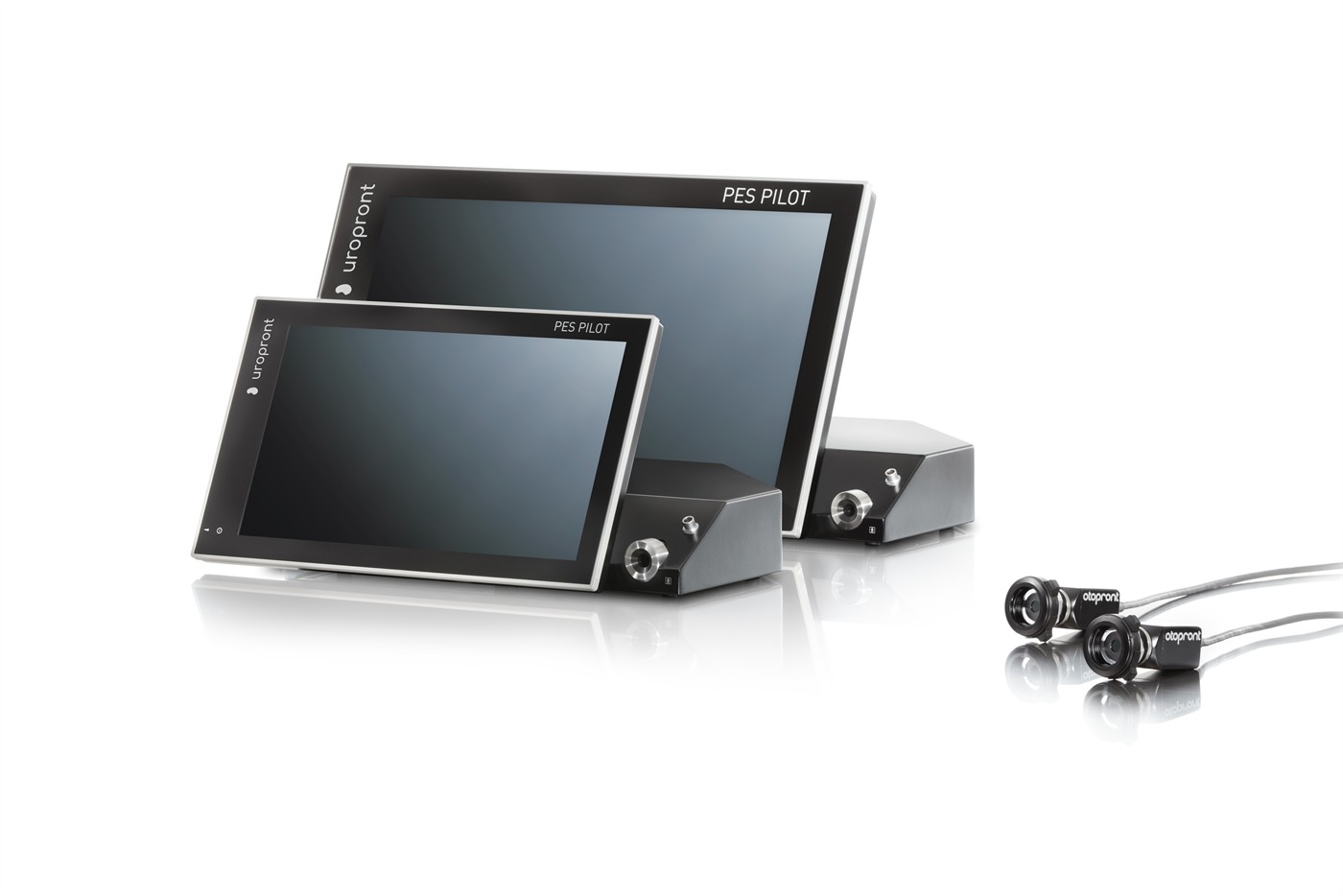

15.6″ or 21″ touchscreen
Capacitive screen with no loss of contrast, vertically swivelling by 45°. The front-mounted screen is positioned directly within your operating area.
Otopront Picture Enhancement (OPE)
Differentiated use of blue and green spectral components highlights conspicuous vessel and tissue patterns for clearer findings.
Integrated patient management
Save to internal memory or USB, tag findings on screen by fingertip, and exchange data automatically with your practice IT or HIS.
Built around how you work
With its front-mounted touchscreen and compact size, the device incorporates directly into the working area. All functions are operated by fingertip or mouse. This lets you operate all key functions directly at your workstation and reduces unnecessary movement around the room.
- ✓ Two additional monitors connectable (doctor & patient)
- ✓ Patient monitor can be disabled at any time
- ✓ Still photo / video by foot pedal or on-screen shutter
- ✓ Compact and mobile — usable across locations
Full HD or 4K camera
Choose the camera that fits your workflow. A second camera (for example for a microscope) can be integrated, with an automatic switching system between the two.
- ✓ Full HD camera, optional 4K
- ✓ Second camera with automatic switching
- ✓ Optional rolling cart to move between rooms
- ✓ Numerous IT and connection ports
- ✓ One camera head for different endoscope systems: whether rigid or flexible endoscope – compatible with every optic for the widest range of applications
Findings and patient software
The clearly structured user interface supports efficient documentation, reporting and patient management.
- ✓ Recording and documentation with one click
- ✓ Full video and photo post-processing, annotation and reporting
- ✓ Intuitive interface without complicated submenus
- ✓ Complete patient database with search, findings text field and comparison
- ✓ Fully integrable; local storage, printing and USB export are also available
Key specifications
| Camera | Latest C-MOS technology, resolution beyond Full HD (1920×1200), optional 4K |
|---|---|
| Imaging modes | Live video, still capture |
| Picture enhancement | Otopront Picture Enhancement (OPE) — blue/green spectral differentiation |
| Display | 15.6″ or 21″ capacitive touchscreen, no loss of contrast, swivels 45° |
| Monitors | Up to two additional monitors (doctor & patient), patient monitor switchable |
| Cameras | Full HD / 4K, optional second camera with automatic switching |
| Patient management | Internal memory or USB; on-screen finding annotation |
| IT integration | DICOM, HIS / PACS, HL7 / GDT compatibility |
| Control | Touchscreen, mouse, foot pedal |
| Form factor | Compact, front-touchscreen, portable; optional rolling cart |
Specifications reflect the PES PILOT HDpro platform and may vary by configuration. Full datasheet available on request.
