Everything you need for endoscopic urology
One imaging platform — rigid optics, reusable flexible and flexible single-use endoscopes, therapy, software and the accessories that hold it all together.
The uropront portfolio
All listed cameras and endoscopes are compatible with the PES PILOT HDpro and can be combined individually depending on the procedure.
PES PILOT HDpro
Portable Full-HD/4K video diagnostics with touchscreen and patient management.
Learn more →
V-Cysto FSU
Sterile single-use flexible scope with shark head tip and working channel.
Learn more →
UroCart
Height-adjustable cart with monitors, an infusion stand and scope holders.
Learn more →

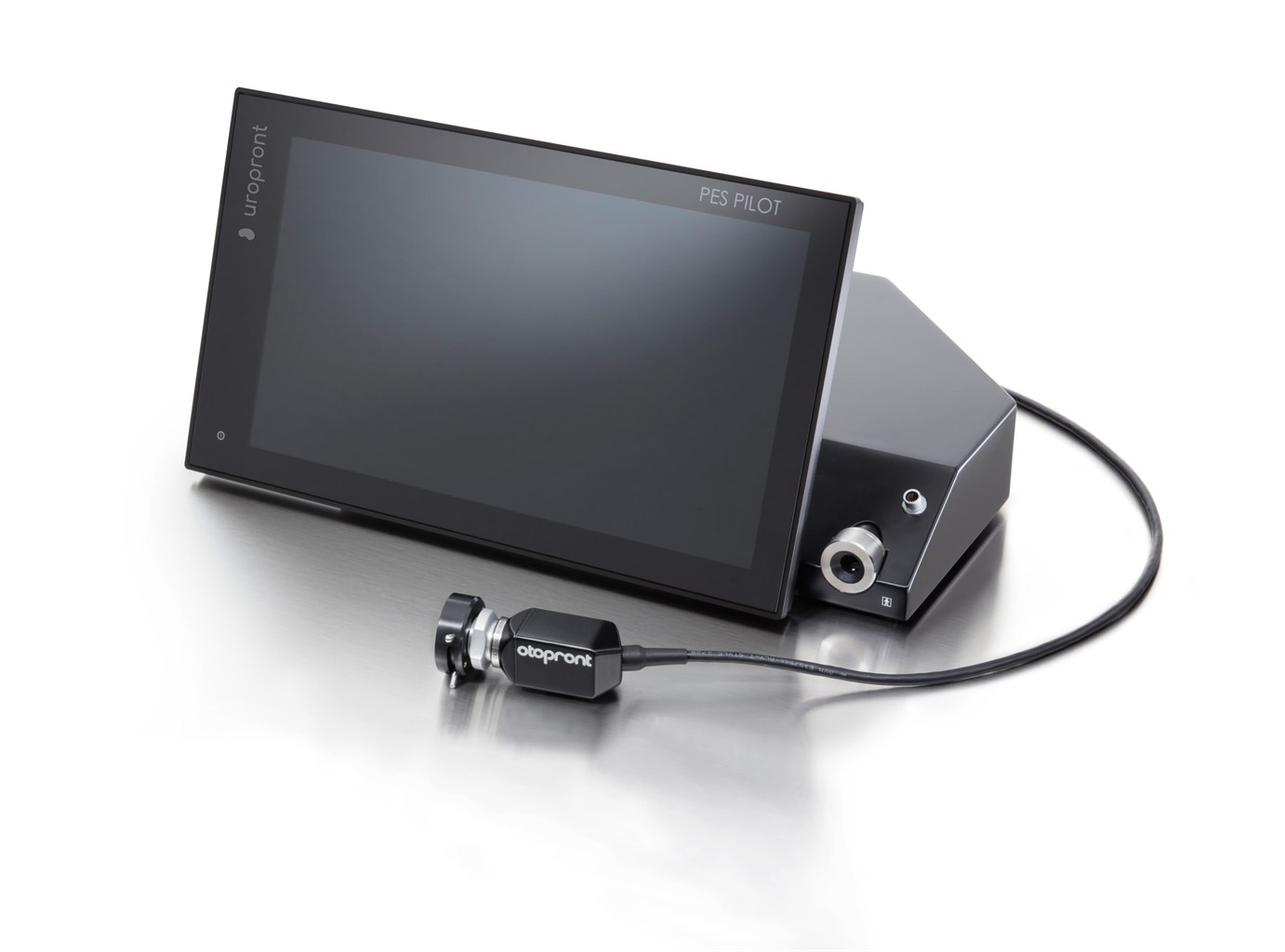

PES PILOT HDpro — for urological videoendoscopy
A complete portable system combining a Full-HD camera (optionally 4K), video recording and patient management in one compact, front-touchscreen device.
- ✓ Latest C-MOS chip, resolution beyond Full HD
- ✓ 15.6″ or 21″ capacitive touchscreen, swivels 45°
- ✓ OPE picture enhancement & integrated patient management
V-Cysto FSU — single-use video endoscope
For single use: no repair or reprocessing costs. The sterile single-use endoscope is connected, used immediately and then disposed of properly. As a single-use endoscope, the V-Cysto FSU requires no reprocessing. At the same time, it uses the PES PILOT HDpro imaging platform.
- ✓ Curved tip in “shark head” design
- ✓ Large 140° field of view and great depth of field
- ✓ High resolution and precise contrast
- ✓ 210° up/down deflection with high bending capability
- ✓ Large working channel 7.2 Fr / 2.4 mm — compatible with many surgical instruments
- ✓ Patented, light and ergonomic handle for comfortable handling
| Field of view | 140° |
|---|---|
| Deflection | 210° up / 210° down |
| Working channel | 7.2 Fr / 2.4 mm |
| Tip design | Curved “shark head” for gentle insertion |
| Use | Single-use, sterile — no reprocessing |
| Handle | Patented, light and ergonomic |
Outer diameter and full datasheet available on request.
| Field of view | 120°, depth of field 3 mm – 200 mm |
|---|---|
| Working length | approx. 360 mm |
| Outer diameter | 5.2 mm / 15.6 Fr |
| Working channel | 2.6 mm / 7.8 Fr |
| Deflection | 275° up / 275° down |
| Shaft | Soft and flexible for easy handling |

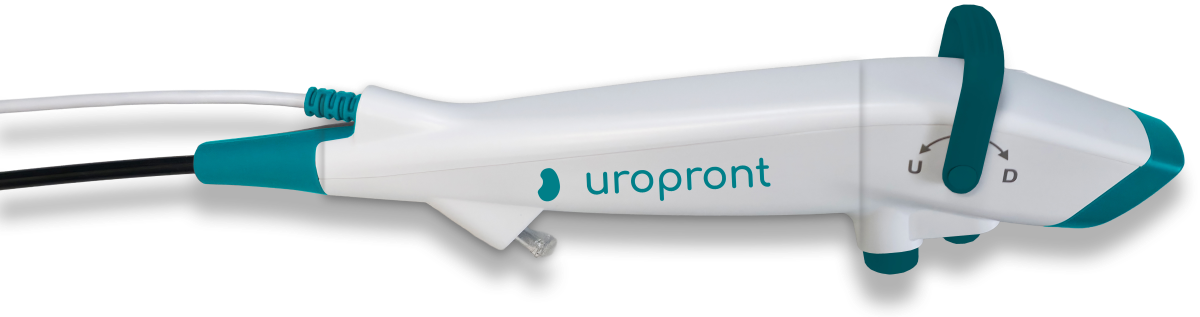

V-Cysto F — flexible reusable endoscope
Flexible reusable cystoscope with a wide deflection range and integrated working channel for common instruments. For procedures where a reusable endoscope is the most economical choice.
- ✓ Flexible, soft shaft for easy handling
- ✓ 120° field of view and great depth of field (3 mm – 200 mm)
- ✓ Working length approx. 360 mm
- ✓ Outer diameter 5.2 mm / 15.6 Fr, working channel 2.6 mm / 7.8 Fr
- ✓ Large deflection range of 275° up and 275° down
- ✓ Full integration into the PILOT workflow and software

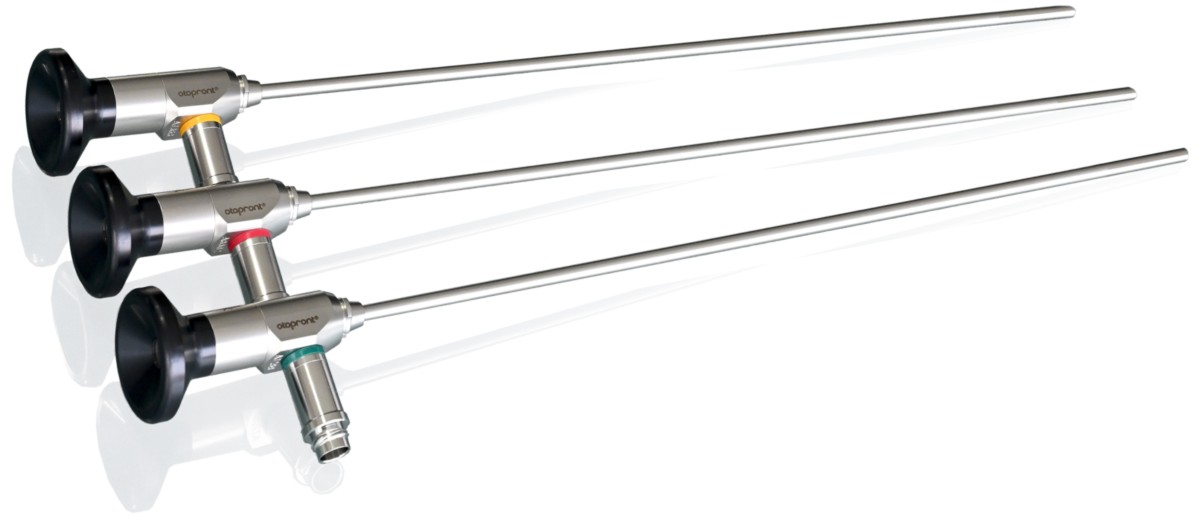

Rigid instruments
A range of high-quality rigid optics in the viewing directions and diameters relevant to urology — matched to the PES PILOT HDpro camera for clear, true-colour imaging.
- ✓ Multiple viewing angles and diameters
- ✓ Optimised colour fidelity with the PES camera
- ✓ Robust optics built for daily clinical use
Detailed model list and specifications available on request.
Coagulation
Reliable coagulation technology complements diagnostics and supports minor ambulatory procedures — as an addition to a well-thought-out uropront workplace.
- ✓ Suited to minor office procedures
- ✓ Integrates into the uropront workstation
- ✓ Service and support from one partner
Configurations and accessories available on request.
UroCart
The height-adjustable cart provides compact and well-thought-out housing for the PILOT video system — with optional additional monitors, an infusion stand, and holders and trays for flexible optics, so the system adapts to your workflow.
- ✓ Houses PILOT, keyboard and drawer — fully height-adjustable
- ✓ Optional second monitor on a gooseneck arm
- ✓ Optional height-adjustable infusion stand
- ✓ Holders and trays for flexible optics
- ✓ Antistatic castors with brake
Are you unsure which configuration fits your practice?
Tell us how you work and we will put together the right uropront configuration with you.
Talk to us
